1.2''

OLED Micro display

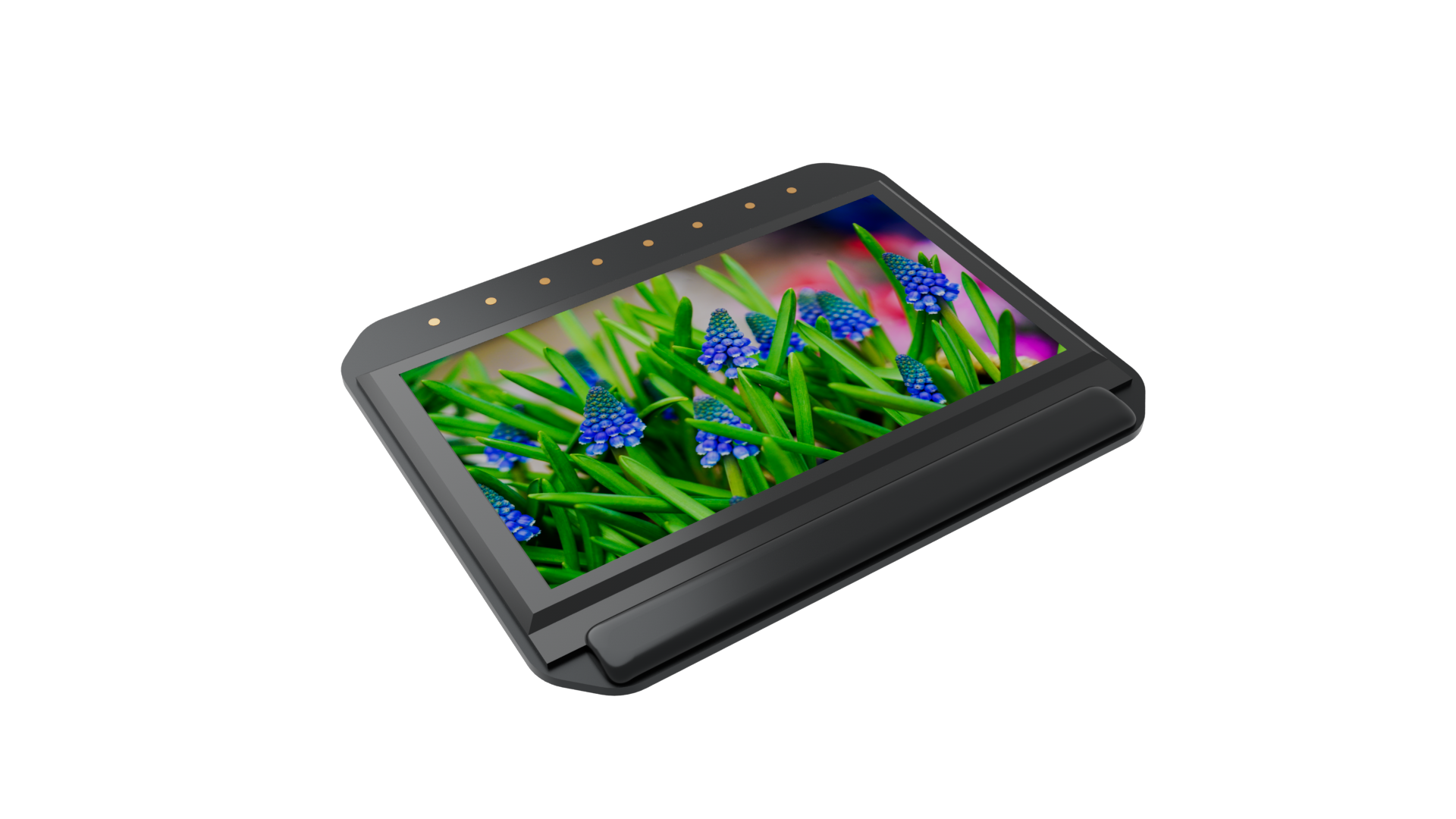

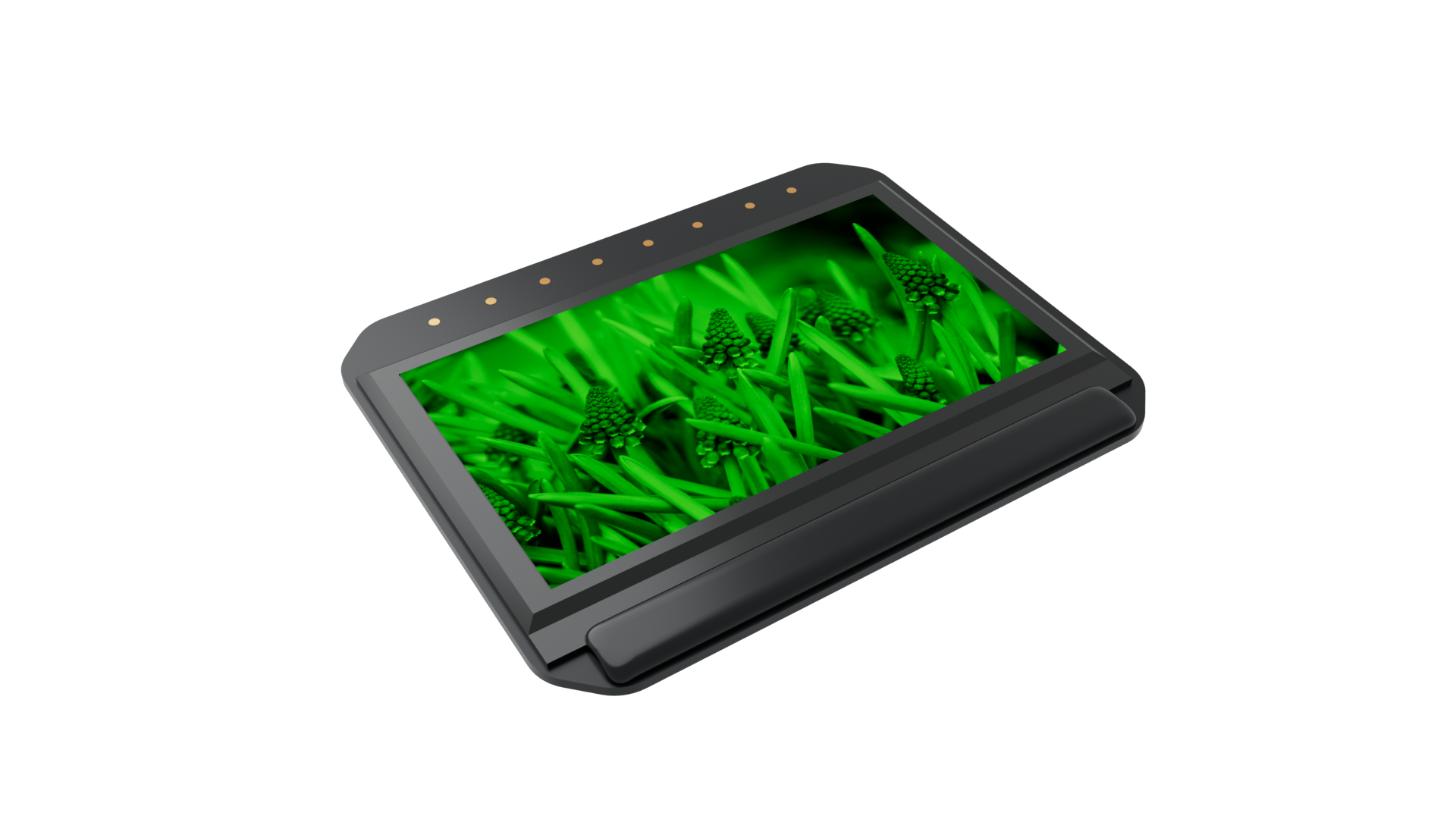

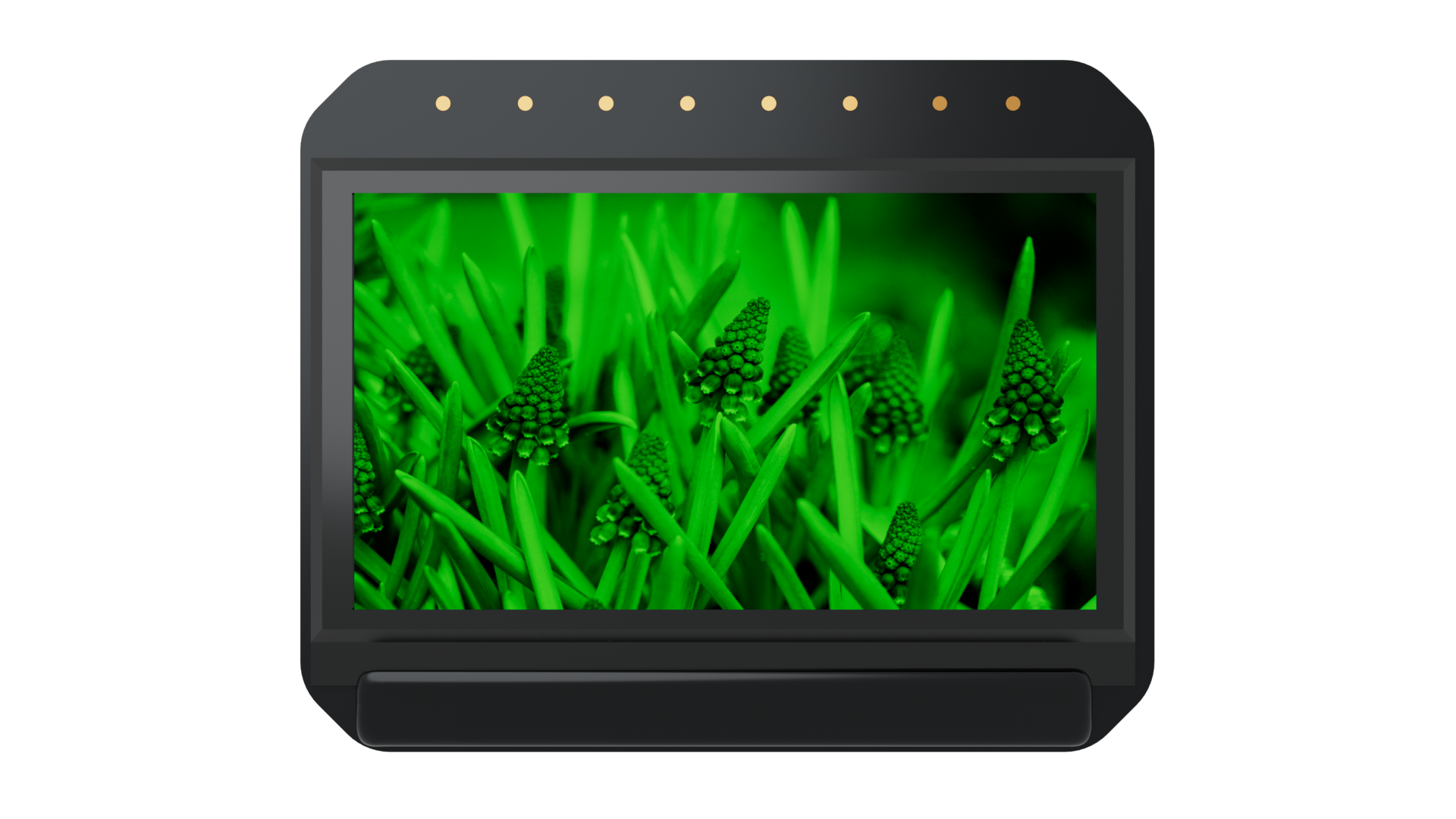

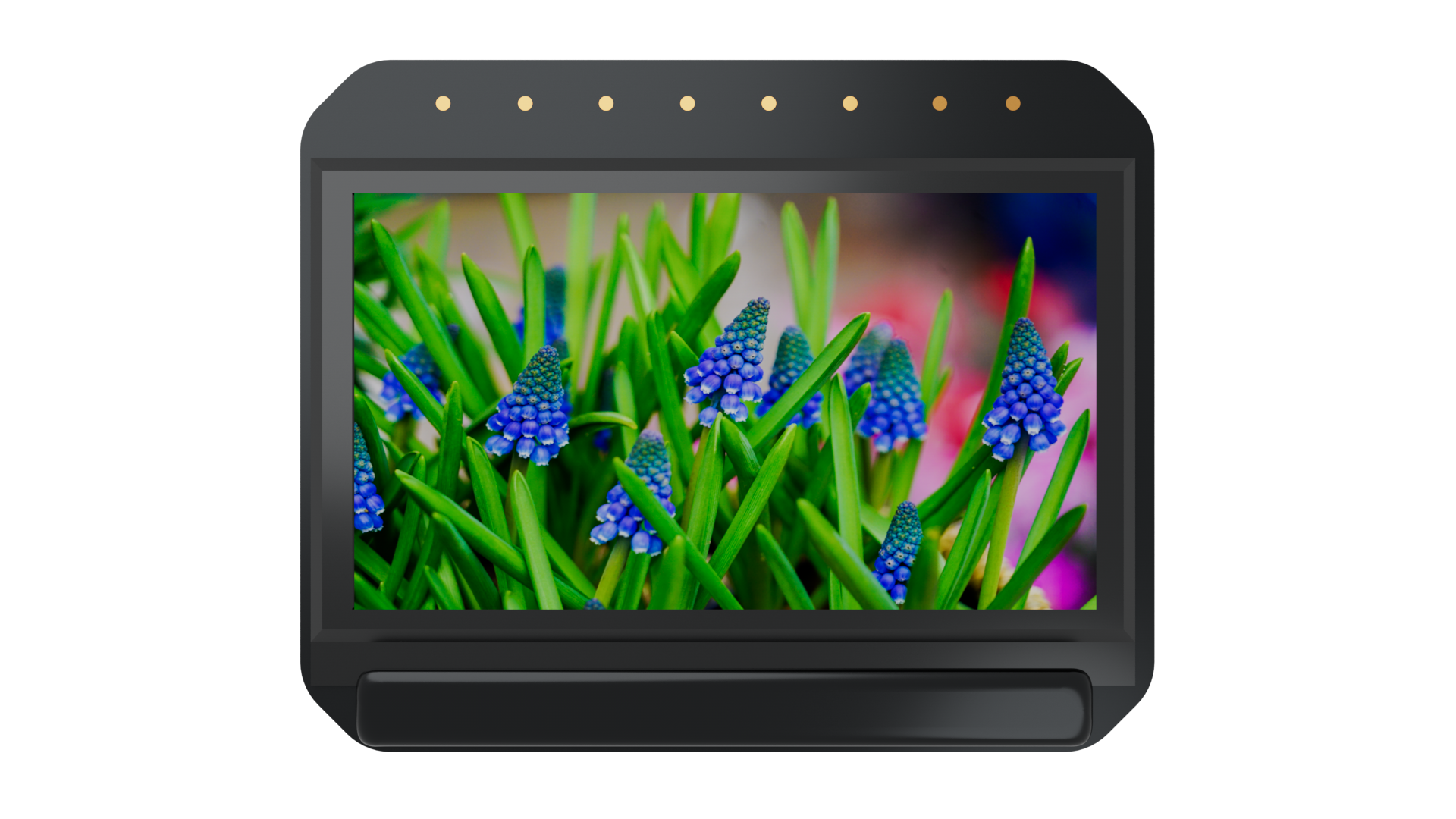

The FHD120 OLED Micro display has 1920×1080 resolution for high performance full color and 3840x2160 resolution for high brightness mono green, with the characteristics of high brightness, high color gamut, and high resolution. Ehis series are mainly applied in AR/VR head-mounted products and other near-eye display devices. .

Product characteristics

High brightness, high contrast, high color gamut
Dual LVDS interface, compatible with VESA/JEIDA standard video format
Support I2C universal serial protocol, online configuration image movement, mirror display, brightness/contrast adjustment
Embedded temperature sensor, which can perform automatic temperature-brightness-Gamma calibration to maintain the consistency of full temperature display
Embedded PWM mode dimming function, which can ensure the color temperature and Gamma consistency under the full brightness range

Product characteristics

Product Series	FHD120HW01C	QFHD120HW01G
Type	High performance Full Color	High brightness Mono Green
Resolution	1920×1080	3840×2160
Pixel size	13.8μm×13.8μm	6.9μm×6.9μm
Pixel arrangement	RGBW hexagon
Display Area	26.5mm×14.9mm(1.2 inch diagonally)
Brighhtness Uniformity	≥90%
Contrast	＞10000:1
Gray Levels	Up to 256
Typical Refresh Rate	30Hz~75Hz
Video interface	Dual LVDS
Maximum brightness	800nit	10000 nit
Typical Brightness	450nit	5000nit
Typical power consumption	480mW	555mW
Voltage	1.8V,3.3V,5V
Operating temperature	+45℃~+65℃
