0.39''

OLED Micro display

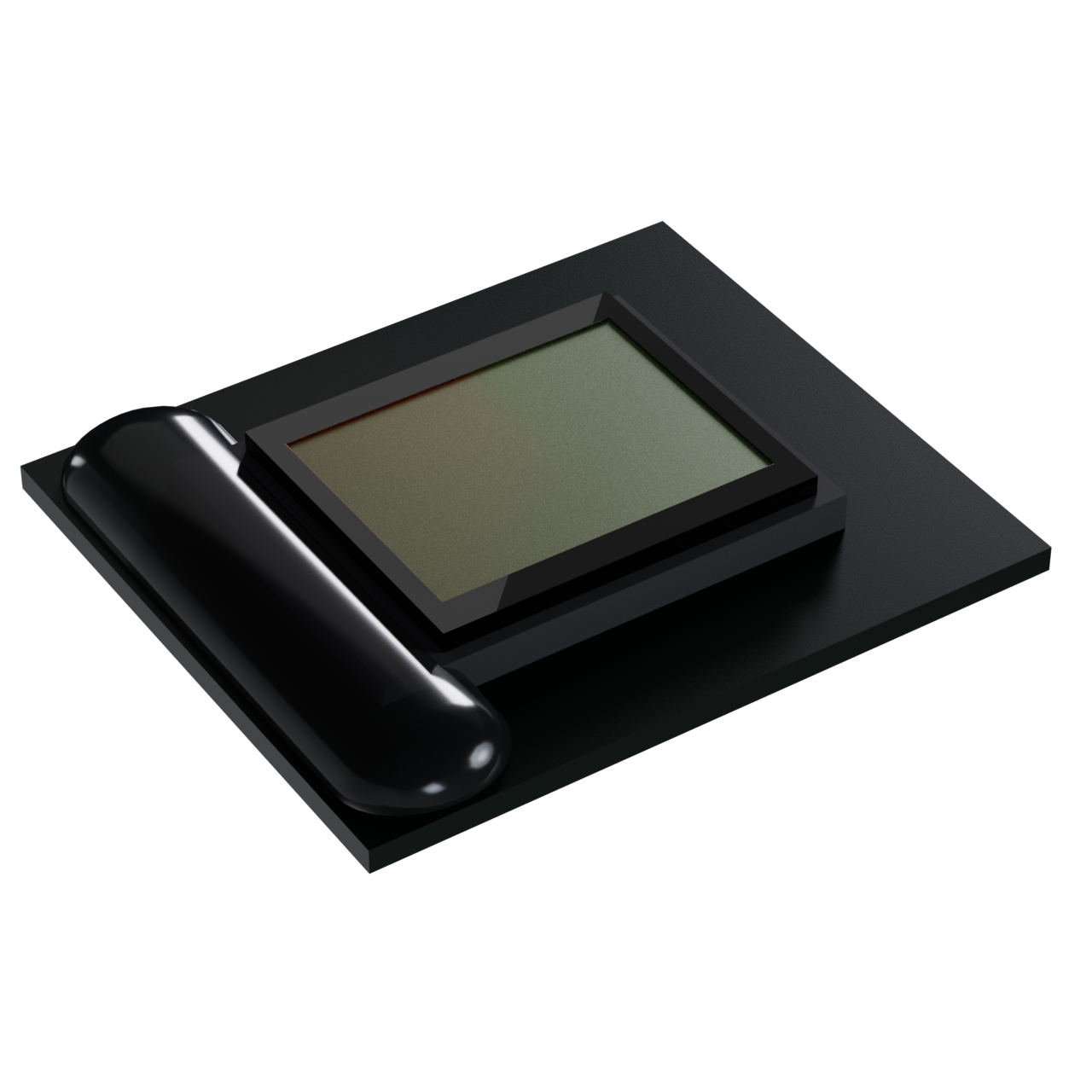

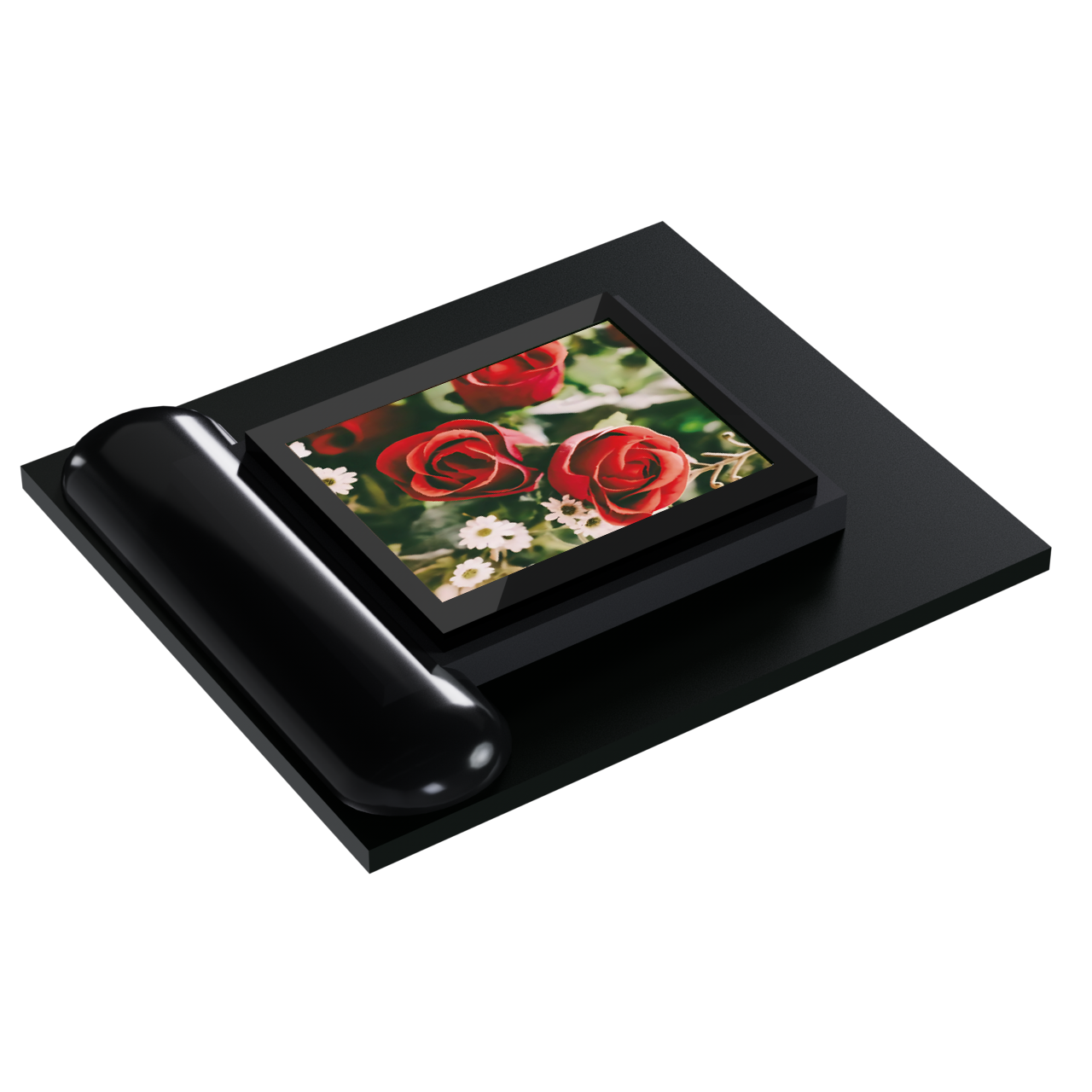

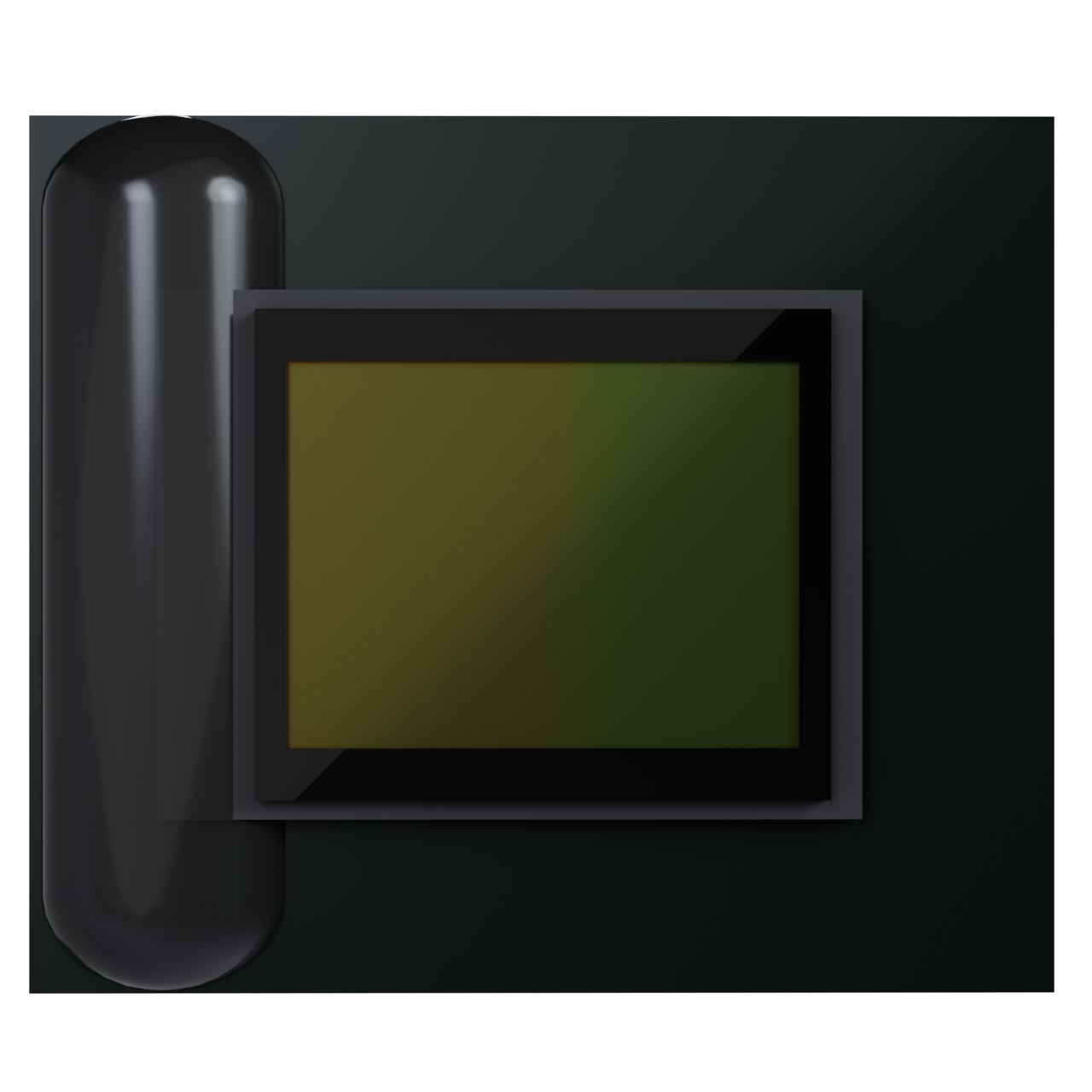

The XGA039 series products have the resolution of 1024×768, with 0.39 inch display size and 7.8μm display size. diverse series including Low power consumption full color, high performance full color ，Ultra brightness mono green and Ultra brightness full color. There series are mainly applied in the night vision,thermal imaging, HDM, Digital sight, EVF, FPV and other scenarios.

Product characteristics

Low power consumption
High contrast
The Communication interface supports I2C
The video interface supports RGB, YCbCr and ITU-R BT.656
Embedded digital temperature sensor
Support PWM-mode brightness adjustment function
Support automatic brightness-temperature compensation function
Support image brightness and contrast digital signal enhancement functions
Support horizontal / vertical inverse display of video images
Support image position adjustment
Compatible with low-resolution image display

Product characteristics

Product Series		XGA039HW08C	XGA039HW06C	XGA039HW03G	XGA039HW13C
Features		Low Power Consumption full color	High performance full color	Ultra brightness mono green	Ultra brightness full color
Resolution		1024×768
Pixel size		7.8μm×7.8μm
Display Size		8.14mm×6.15mm(0.39 inch diagonally)
Pixel arrangement		RGB Hexagon
Brightness Uniformity		≥90%
Contrast		10000:1
Grayscale		Level 256
Refresh rate		25Hz~75Hz
Video interface		24bit-RGB, 8/16bit-YCbCr, ITU-RBT.656
Max brightness		200nit	400nit	8000nit	4000nit
Typical brightness		150nit	200nit	4000nit	4000nit
Typical power consumption		150mW	120mW	130mW	270mW
Supply Voltage	Analog	+3.3V	+5V
	Digital	+1.8V	+1.8V
Operating Temperature		-20℃~+65℃
