0.30''

The resolution of HD030 series products is 1280×720, the display size is 0.30 ", the pixel size is 5.22μm.It has the characteristics of high brightness, wide color gamut, low power consumption ,etc, and HD030 is a star product of our company in the AR field.

Product Description

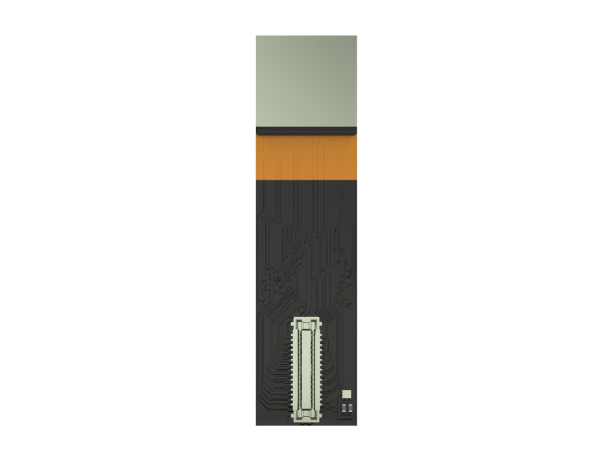

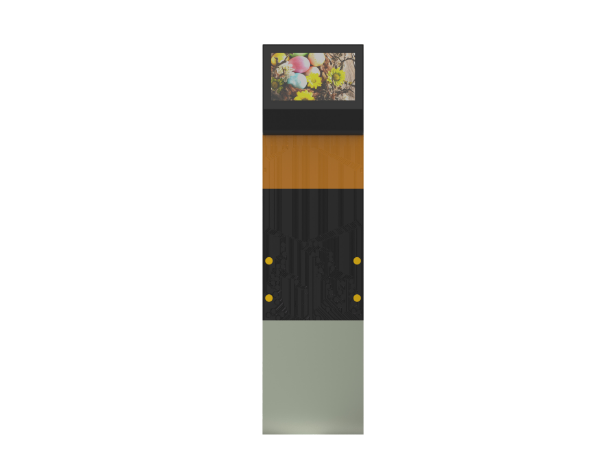

产品图片

Product characteristics

10000 nits Peak Brightness, 98% DCI-P3 Color Gamut
4,865 PPI Pixel Density, 2/3 SPR Pixel Design
Brightness and contrast enhanced by digital signal processing.
Low Power Consumption, minimal heat dissipation, easy to miniaturize design.
Integrated temperature sensor for real-time thermal monitoring.
Built-in PWM Dimming, adaptive Brightness Control for dynamic adjustments.
Single-lane MIPI Input (4 lanes).
Supports display positioning adjustment, compatible with low resolution image display

Product characteristics

Product Series		GZ030PCC01
Design		COF-encapsulated color display
Resolution		1280×720 (2/3 SPR)
Pixel Size		5.22 μm × 5.22 μm
Display Size		0.30" (6.68 mm × 3.76 mm)
Pixel Arrangement		RGB Hexagonal layout
Brightness Uniformity		≥90%
Contrast Ratio		10000:1
Gray Scale		256
Refresh Rate		30 Hz ~ 120 Hz
Video Interface		MIPI（4lane），D-PHY v1.2 1.0Gbps/lane
Peak Brightness		10000 nits
Typical Brightness		10000 nits
Typical Power Consumption		160 mW
Power Supply Voltage	Analog Voltage	+5.0 V
	Digital Voltage	+1.8 V
	Negative Voltage	-5.0 V
Operating Temperature		-20℃~+65℃
