65''

QHD065系列产品分辨率为2560×1440，显示尺寸为0.65”，像素尺寸为5.67μm，具有高亮彩色、高色域、低功耗等产品特点，为公司在AR领域的一款大视场角、高分辨率产品。

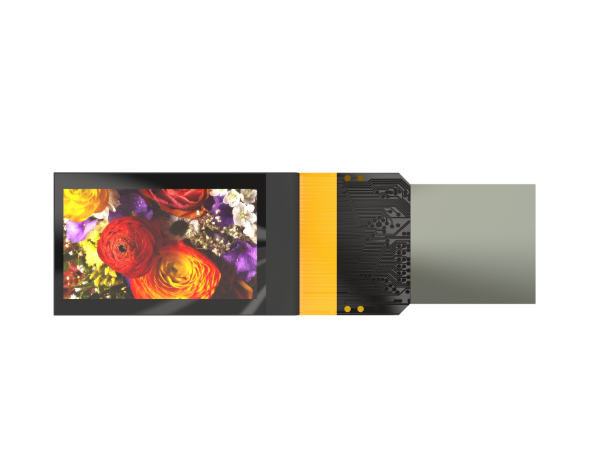

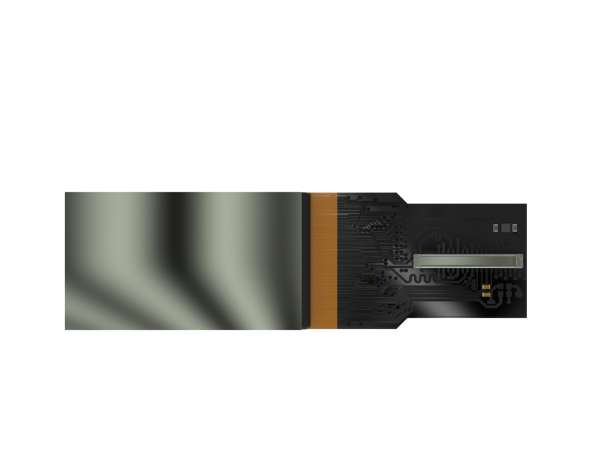

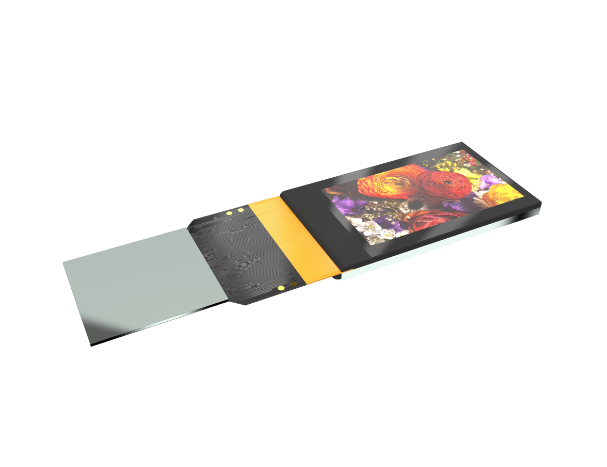

产品图片

Product characteristics

High brightness of 6000nits and high color gamut of 98% @DCI-P3
High image density of 4518PPI
It has the function of digital signal enhancement for image brightness and contrast
Low power consumption, low heat generation, and convenient for miniaturization design
It is equipped with a built-in temperature sensor that can read the screen temperature in real time
It is equipped with built-in PWM brightness adjustment and adaptive brightness adjustment functions
Single-channel MIPI signal (4-lane) signal input
Supports image display position adjustment and is compatible with low-resolution image display

Product characteristics

Product Series		GZ065PEC01
Design		COF-encapsulated color display
Resolution		2560×1440
Pixel Size		5.67 μm×5.67 μm
Display Size		0.65” （14.515mm×8.164mm）
Pixel Arrangement		RGB Hexagonal layout
Brightness Uniformity		≥ 90%
Contrast Ratio		10000:1
Gray Scale		256
Refresh Rate		30 Hz ~ 120 Hz
Video Interface		MIPI（4lane），D-PHY v1.2 1.0 Gbps/lane
Peak Brightness		6000 nits
Typical Brightness		6000 nits
Typical Power Consumption		260 mW
Power Supply Voltage	Analog Voltage	+5.0 V
	Digital Voltage	+1.8 V
	Negative Voltage	-5.0 V
Operating Temperature		-20℃~+65℃
